Onyx Helix Track hub set - Closeout

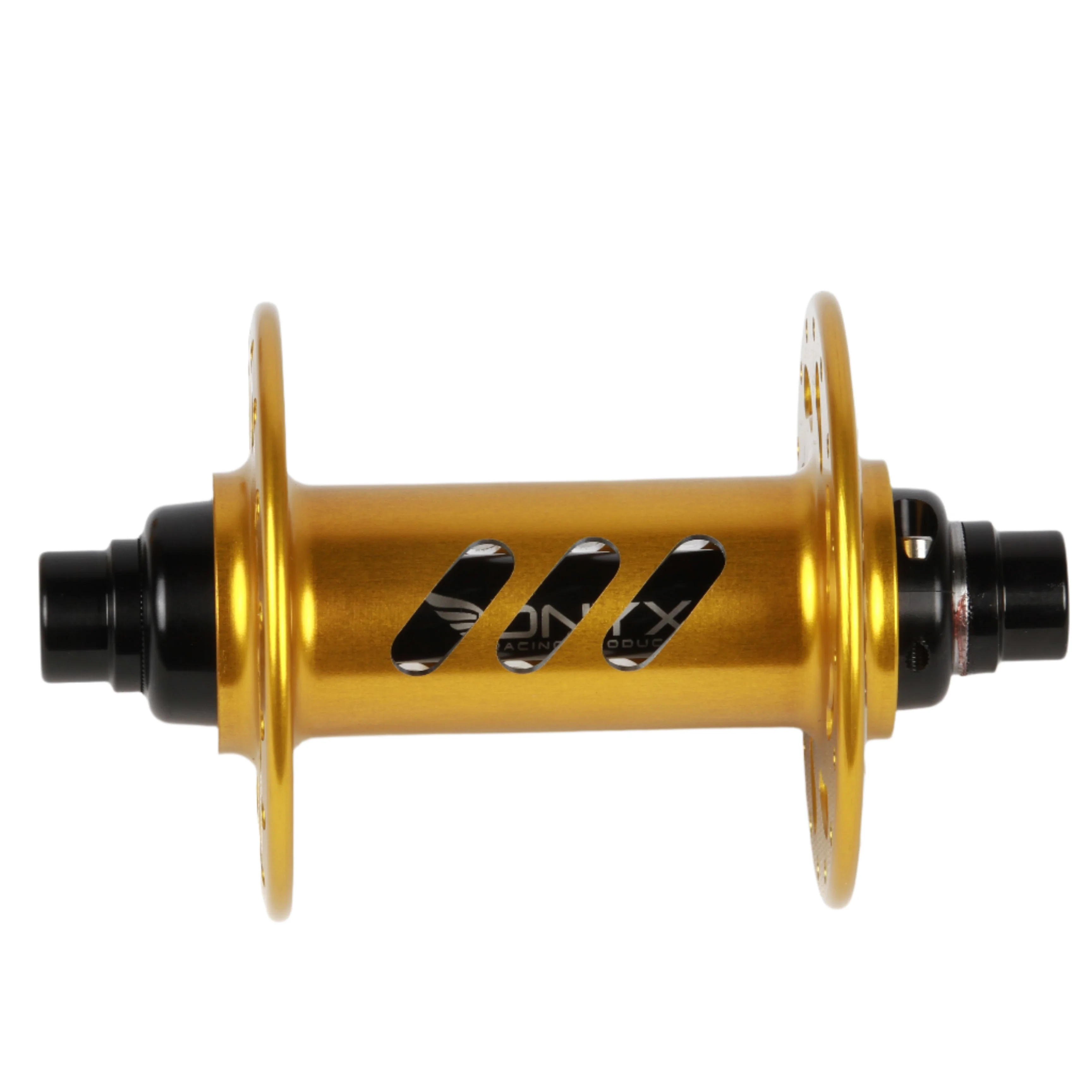

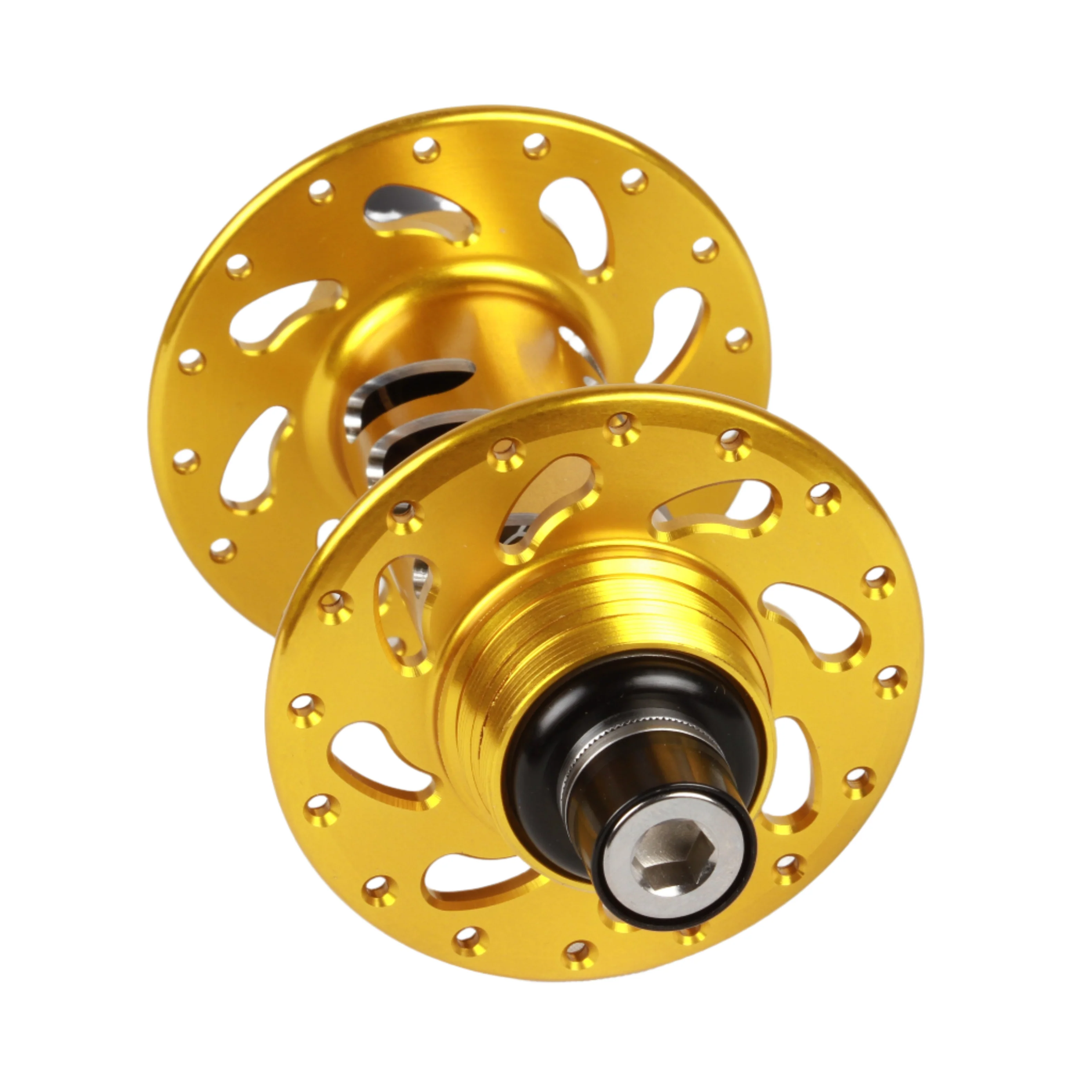

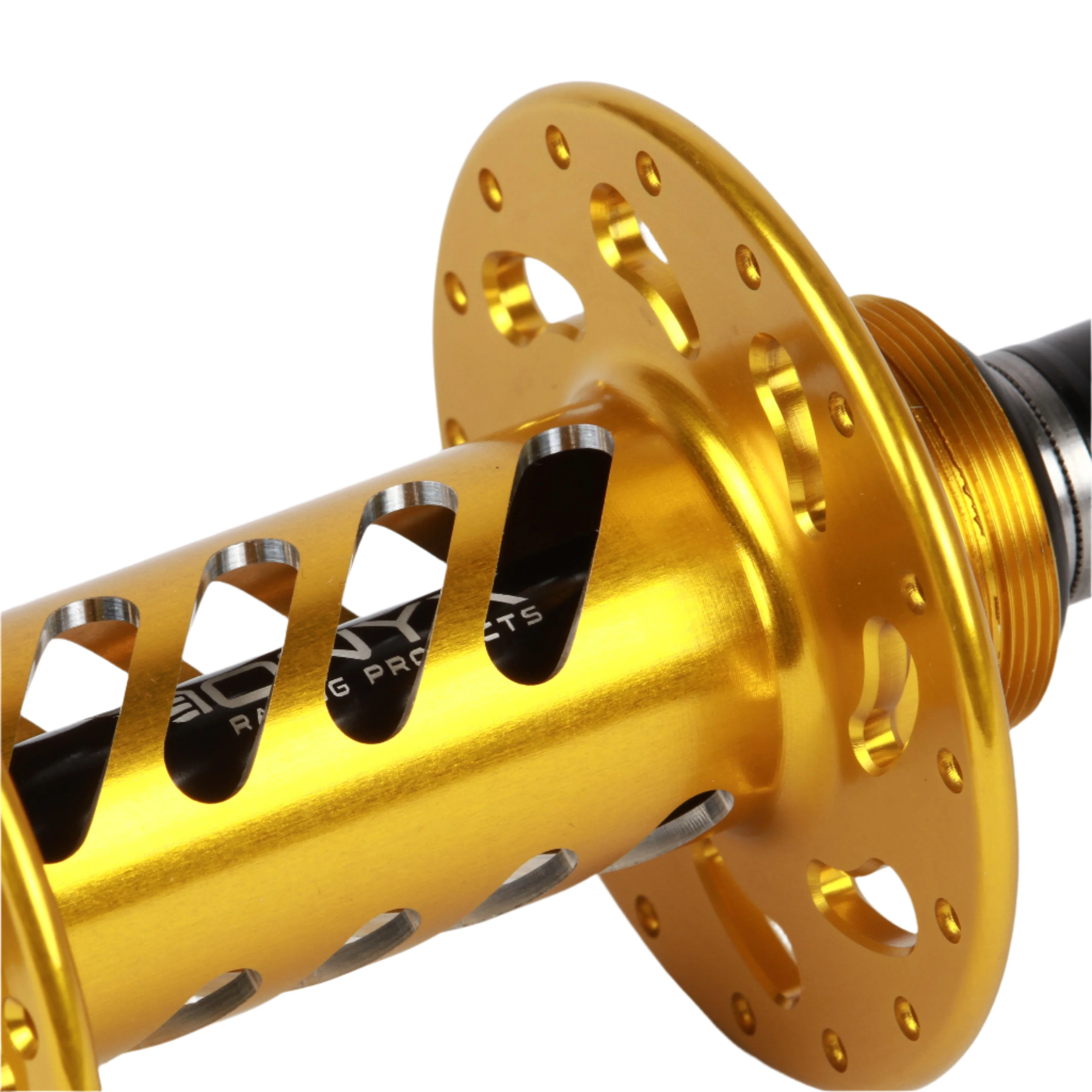

Made in Minnesota by Onyx Racing Products, Helix Track hubs feature a unique high flange hub shell design with slotted cutouts along the center of the CNC-machined 7075-T6 aluminum hub body, minimizing weight and exposing the logo while rotating around the anodized aluminum axle shaft beneath.

Ceramic hybrid 6902 sealed bearings, titanium axle bolts and anodized aluminum end caps & bolt caps are standard.

Available in 32h sets.

Specifications

• spacing: 100mm front, 120mm rear

• rear is single-side fixed (standard 1.370"x24tpi threading)

• lockring compatibility: English-threaded

• flange diameter: 67mm

• front center to flange: 33.9mm

• rear center to flange: 35.72mm

• bearing size: 6902

• axle bolt size: 8mm front, 10mm rear

• max spoke tension: 120kgf

• color: gold

• weight: 204g front, 252g rear

Closeout info

Items labeled as "Closeout" have either been discontinued by the manufacturer and/or items we will no longer be stocking, and have never been installed or used.

All sales are final on Closeout items.
